交通标志识别
校准¶
1.启动gazebo节点
roslaunch turtlebot3_gazebo turtlebot3_autorace_2020.launch
2.移动到交通标志前,可以看清标识
roslaunch turtlebot3_teleop turtlebot3_teleop_key.launch
3.打开可视化界面
rqt_image_view
- 选择
/camera/image_compensated - 这时的图像应该清晰地看到该标志，保存该图像同时从中裁剪出只带有交通标志的部分
- 然后将裁剪下载的标志图像放在
/turtlebot3_autorace_2020/turtlebot3_autorace_detect/image/目录中 - 图像的名称应与源码中指定的名称相匹配，譬如
测试¶
1.关闭所有节点，打开gazebo
roslaunch turtlebot3_gazebo turtlebot3_autorace_2020.launch
2.启动相机内标定
roslaunch turtlebot3_autorace_camera intrinsic_camera_calibration.launch
3.启动相机外标定
roslaunch turtlebot3_autorace_camera extrinsic_camera_calibration.launch
4.启动键盘控制节点
roslaunch turtlebot3_teleop turtlebot3_teleop_key.launch
控制小车移动到标志前,然后关闭键盘控制节点
5.启动交通检测程序
roslaunch turtlebot3_autorace_detect detect_sign.launch mission:=intersection
选择需要检测的信号标志的任务参数，对应的参数有：
intersection、construction、parking、level_crossing和tunnel
6.打开可视化界面
rqt_image_view
订阅话题
/detect/image_traffic_sign/compressed

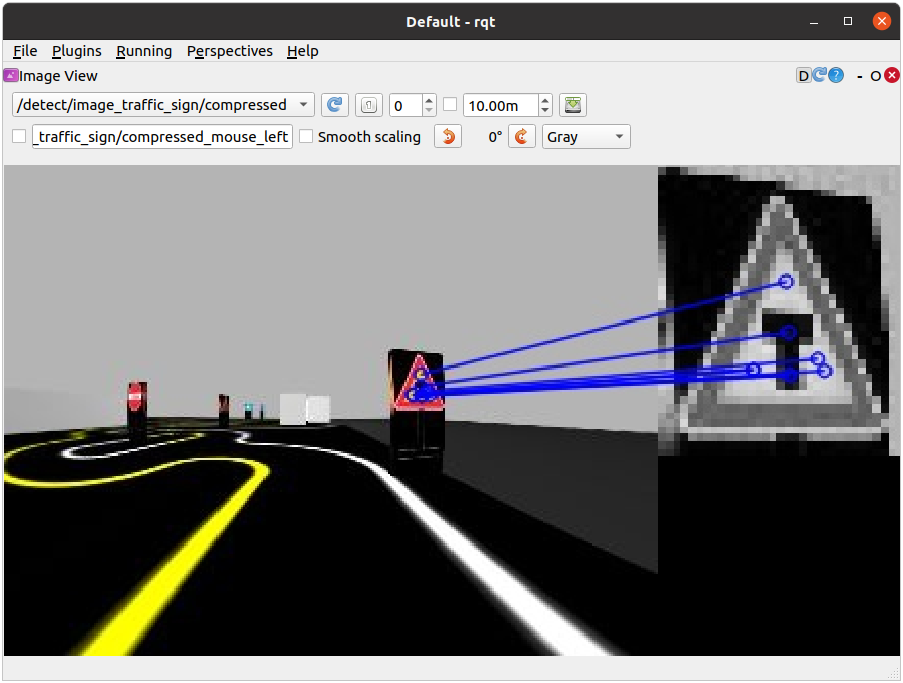

mission:=intersection： 交叉路口标志

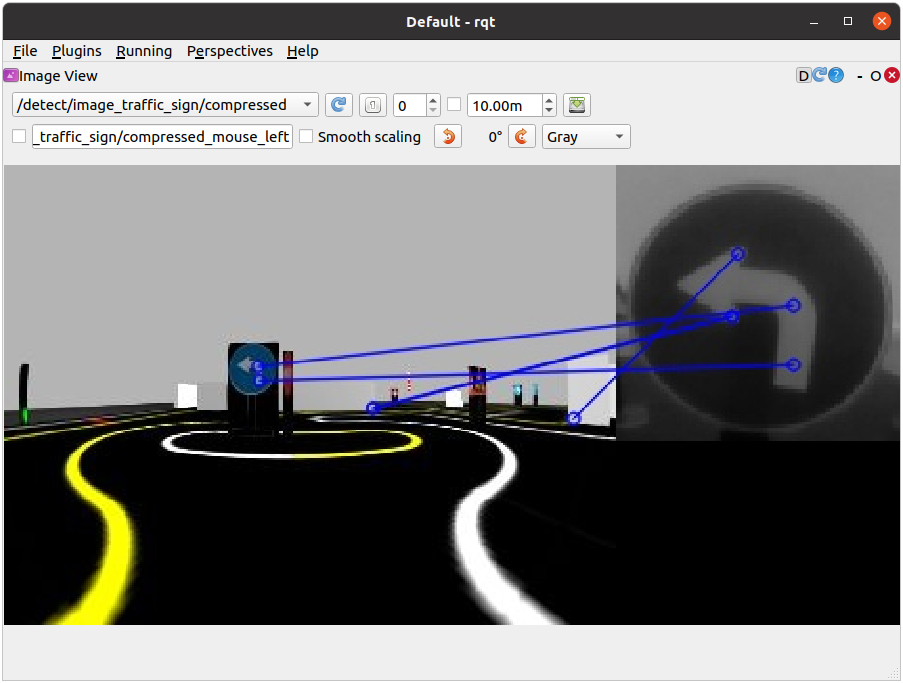

mission:=intersection： 左转标志

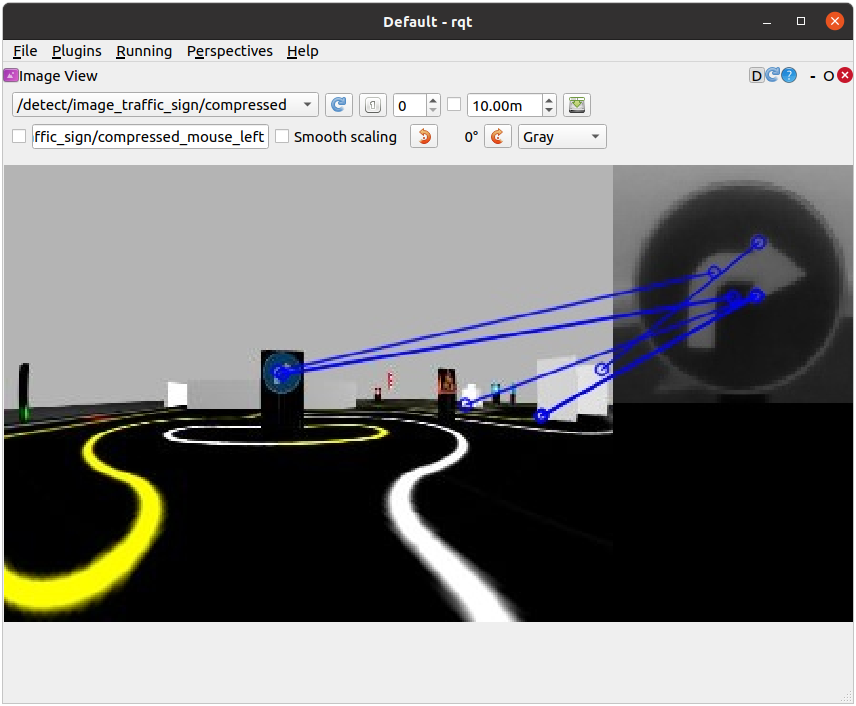

mission:=intersection： 右转标志

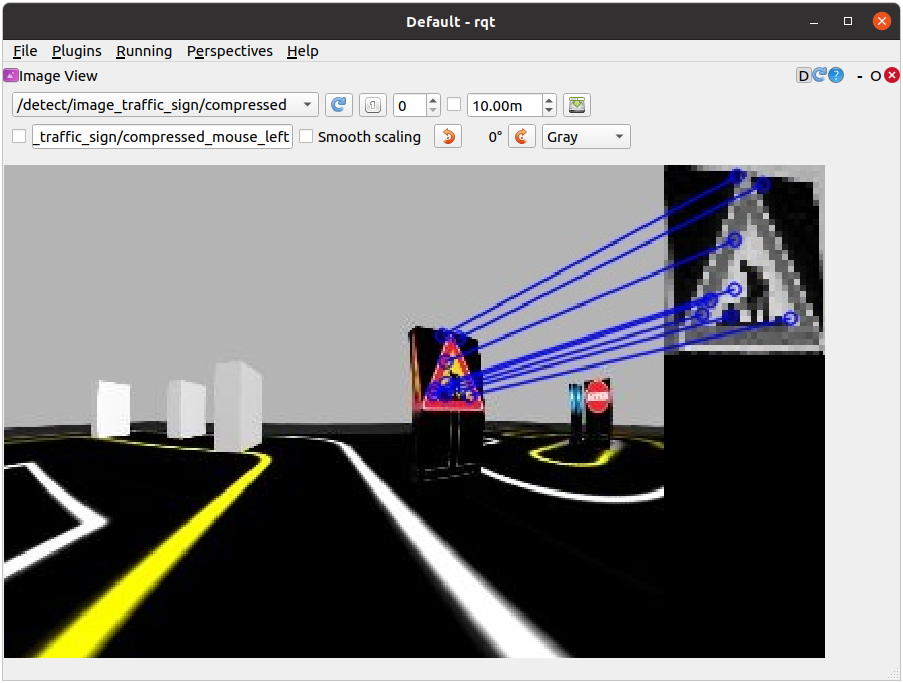

mission:=construction： 施工路段标志

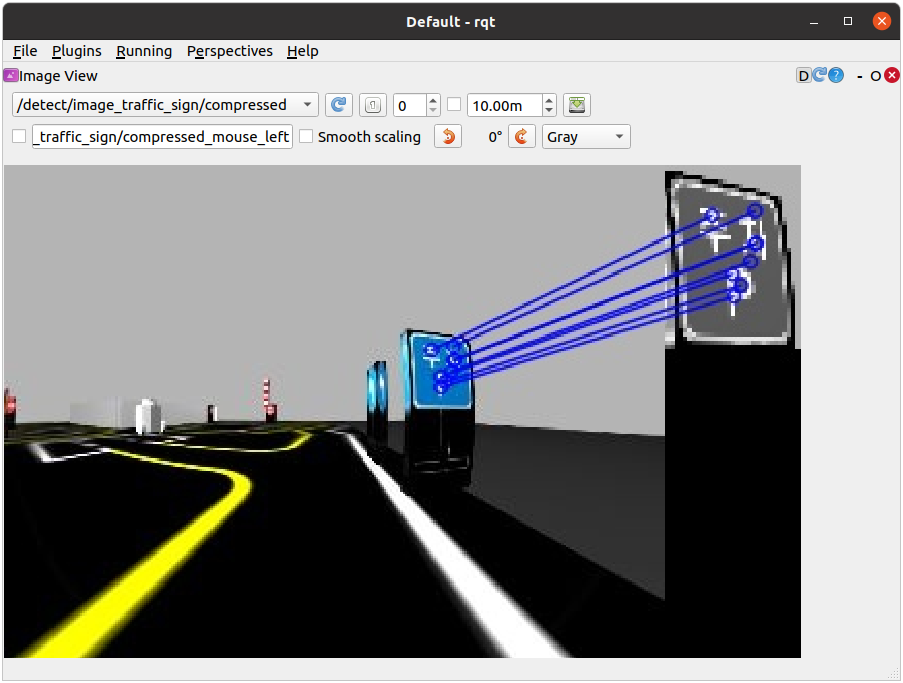

- mission:=parking： 停车标志

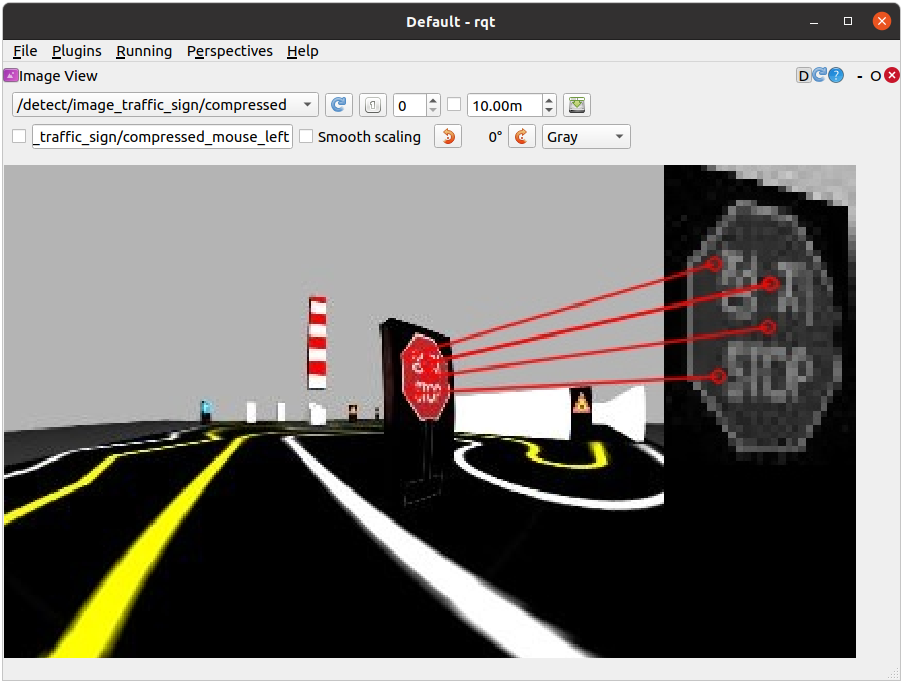

mission:=level_crossing： 交通杆标志

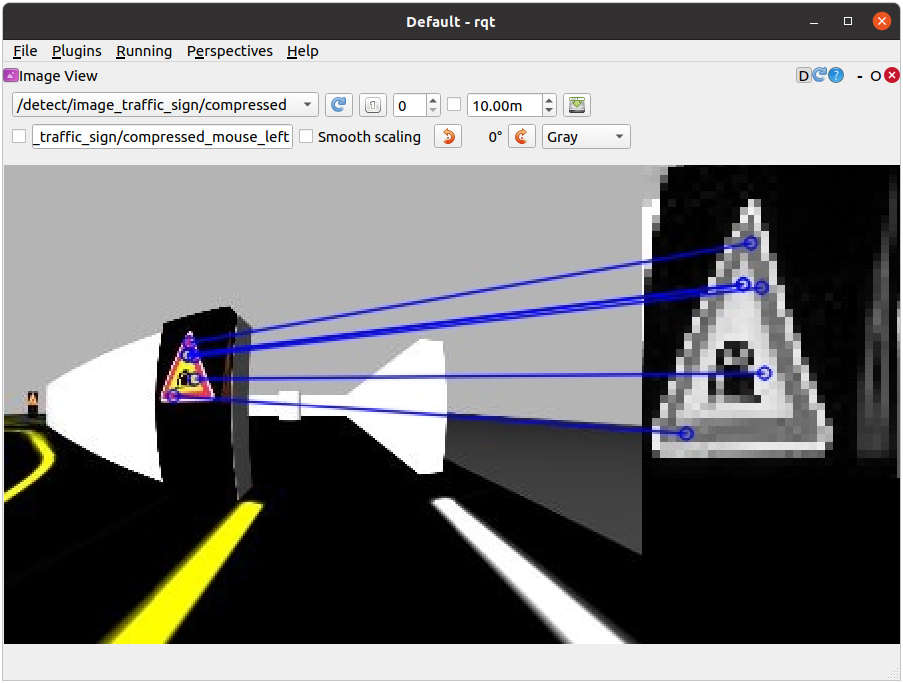

mission:=tunnel：隧道标志
实现¶
detect_intersection_sign¶
turtlebot3_autorace_2020\turtlebot3_autorace_detect\nodes\detect_intersection_sign
fnPreproc
def fnPreproc(self):
# Initiate SIFT detector
self.sift = cv2.SIFT_create()
dir_path = os.path.dirname(os.path.realpath(__file__))
dir_path = dir_path.replace('turtlebot3_autorace_detect/nodes', 'turtlebot3_autorace_detect/')
dir_path += 'image/'
# 灰度图
self.img_intersection = cv2.imread(dir_path + 'intersection.png', 0)
self.img_left = cv2.imread(dir_path + 'left.png', 0)
self.img_right = cv2.imread(dir_path + 'right.png', 0)
self.kp_intersection, self.des_intersection = self.sift.detectAndCompute(self.img_intersection, None)
self.kp_left, self.des_left = self.sift.detectAndCompute(self.img_left, None)
self.kp_right, self.des_right = self.sift.detectAndCompute(self.img_right, None)
FLANN_INDEX_KDTREE = 0
index_params = dict(algorithm=FLANN_INDEX_KDTREE, trees=5)
# 指定索引中的树应该递归遍历的次数,数值越高,精度越高,也越耗时
search_params = dict(checks=50)
# 创建Flann匹配器
self.flann = cv2.FlannBasedMatcher(index_params, search_params)
cbFindTrafficSign
def cbFindTrafficSign(self, image_msg):
# 降低图片检测效率
if self.counter % 3 != 0:
self.counter += 1
return
else:
self.counter = 1
# 将ros图片转换成opencv图片
if self.sub_image_type == "compressed":
np_arr = np.frombuffer(image_msg.data, np.uint8)
cv_image_input = cv2.imdecode(np_arr, cv2.IMREAD_COLOR)
elif self.sub_image_type == "raw":
cv_image_input = self.cvBridge.imgmsg_to_cv2(image_msg, "bgr8")
MIN_MATCH_COUNT = 5
# find the keypoints and descriptors with SIFT
kp1, des1 = self.sift.detectAndCompute(cv_image_input, None)
matches_intersection = self.flann.knnMatch(des1, self.des_intersection, k=2)
matches_left = self.flann.knnMatch(des1, self.des_left, k=2)
matches_right = self.flann.knnMatch(des1, self.des_right, k=2)
# 确定需要发布的交通标志图片
image_out_num = 1
# ------------------ intersection标志检测 ------------------ #
good_intersection = []
for m, n in matches_intersection:
if m.distance < 0.7 * n.distance:
good_intersection.append(m)
if len(good_intersection) > MIN_MATCH_COUNT:
src_pts = np.float32([kp1[m.queryIdx].pt for m in good_intersection]).reshape(-1, 1, 2)
dst_pts = np.float32([self.kp_intersection[m.trainIdx].pt for m in good_intersection]).reshape(-1, 1, 2)
M, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 5.0)
matches_intersection = mask.ravel().tolist()
msg_sign = UInt8()
msg_sign.data = self.TrafficSign.intersection.value
self.pub_traffic_sign.publish(msg_sign)
rospy.loginfo("detect intersection sign")
image_out_num = 2
# ------------------ left标志检测 ------------------ #
good_left = []
for m, n in matches_left:
if m.distance < 0.7 * n.distance:
good_left.append(m)
if len(good_left) > MIN_MATCH_COUNT:
src_pts = np.float32([kp1[m.queryIdx].pt for m in good_left]).reshape(-1, 1, 2)
dst_pts = np.float32([self.kp_left[m.trainIdx].pt for m in good_left]).reshape(-1, 1, 2)
M, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 5.0)
matches_left = mask.ravel().tolist()
msg_sign = UInt8()
msg_sign.data = self.TrafficSign.left.value
self.pub_traffic_sign.publish(msg_sign)
rospy.loginfo("detect left sign")
image_out_num = 3
else:
matches_left = None
# ------------------ right标志检测 ------------------ #
good_right = []
for m, n in matches_right:
if m.distance < 0.7 * n.distance:
good_right.append(m)
if len(good_right) > MIN_MATCH_COUNT:
src_pts = np.float32([kp1[m.queryIdx].pt for m in good_right]).reshape(-1, 1, 2)
dst_pts = np.float32([self.kp_right[m.trainIdx].pt for m in good_right]).reshape(-1, 1, 2)
M, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 5.0)
matches_right = mask.ravel().tolist()
msg_sign = UInt8()
msg_sign.data = self.TrafficSign.right.value
self.pub_traffic_sign.publish(msg_sign)
rospy.loginfo("detect right sign")
image_out_num = 4
else:
matches_right = None
# ------------------ 检测结果发布 ------------------ #
# 没有检测到标志
if image_out_num == 1:
print('not detect a sign ===================================')
if self.pub_image_type == "compressed":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(cv_image_input, "jpg"))
elif self.pub_image_type == "raw":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(cv_image_input, "bgr8"))
# intersection标志发布
elif image_out_num == 2:
draw_params_intersection = dict(matchColor=(255, 0, 0), # draw matches in green color
singlePointColor=None,
matchesMask=matches_intersection, # draw only inliers
flags=2)
final_intersection = cv2.drawMatches(cv_image_input, kp1, self.img_intersection, self.kp_intersection,
good_intersection, None, **draw_params_intersection)
if self.pub_image_type == "compressed":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(final_intersection, "jpg"))
elif self.pub_image_type == "raw":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(final_intersection, "bgr8"))
# left标志发布
elif image_out_num == 3:
draw_params_left = dict(matchColor=(255, 0, 0), # draw matches in green color
singlePointColor=None,
matchesMask=matches_left, # draw only inliers
flags=2)
final_left = cv2.drawMatches(cv_image_input, kp1, self.img_left, self.kp_left, good_left, None,
**draw_params_left)
if self.pub_image_type == "compressed":
# publishes traffic sign image01 in compressed type
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(final_left, "jpg"))
elif self.pub_image_type == "raw":
# publishes traffic sign image01 in raw type
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(final_left, "bgr8"))
# right标志发布
elif image_out_num == 4:
draw_params_right = dict(matchColor=(255, 0, 0), # draw matches in green color
singlePointColor=None,
matchesMask=matches_right, # draw only inliers
flags=2)
fianl_right = cv2.drawMatches(cv_image_input, kp1, self.img_right, self.kp_right, good_right, None,
**draw_params_right)
if self.pub_image_type == "compressed":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(fianl_right, "jpg"))
elif self.pub_image_type == "raw":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(fianl_right, "bgr8"))
detect_construction_sign¶
turtlebot3_autorace_2020\turtlebot3_autorace_detect\nodes\detect_construction_sign
fnPreproc
def fnPreproc(self):
# Initiate SIFT detector
self.sift = cv2.SIFT_create()
dir_path = os.path.dirname(os.path.realpath(__file__))
dir_path = dir_path.replace('turtlebot3_autorace_detect/nodes', 'turtlebot3_autorace_detect/')
dir_path += 'image/'
self.img_construction = cv2.imread(dir_path + 'construction.png', 0)
self.kp_construction, self.des_construction = self.sift.detectAndCompute(self.img_construction, None)
FLANN_INDEX_KDTREE = 0
index_params = dict(algorithm=FLANN_INDEX_KDTREE, trees=5)
search_params = dict(checks=50)
self.flann = cv2.FlannBasedMatcher(index_params, search_params)
cbFindTrafficSign
def cbFindTrafficSign(self, image_msg):
# drop the frame to 1/5 (6fps) because of the processing speed. This is up to your computer's operating power.
if self.counter % 3 != 0:
self.counter += 1
return
else:
self.counter = 1
if self.sub_image_type == "compressed":
# converting compressed image01 to opencv image01
np_arr = np.frombuffer(image_msg.data, np.uint8)
cv_image_input = cv2.imdecode(np_arr, cv2.IMREAD_COLOR)
elif self.sub_image_type == "raw":
cv_image_input = self.cvBridge.imgmsg_to_cv2(image_msg, "bgr8")
MIN_MATCH_COUNT = 5
# find the keypoints and descriptors with SIFT
kp1, des1 = self.sift.detectAndCompute(cv_image_input, None)
matches_construction = self.flann.knnMatch(des1, self.des_construction, k=2)
image_out_num = 1
# ------------------ construction标志检测 ------------------ #
good_construction = []
for m, n in matches_construction:
if m.distance < 0.7 * n.distance:
good_construction.append(m)
if len(good_construction) > MIN_MATCH_COUNT:
src_pts = np.float32([kp1[m.queryIdx].pt for m in good_construction]).reshape(-1, 1, 2)
dst_pts = np.float32([self.kp_construction[m.trainIdx].pt for m in good_construction]).reshape(-1, 1, 2)
M, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 5.0)
matches_construction = mask.ravel().tolist()
# 发布检测到的交通标识
msg_sign = UInt8()
msg_sign.data = self.TrafficSign.construction.value
self.pub_traffic_sign.publish(msg_sign)
rospy.loginfo("construction")
image_out_num = 2
else:
matches_construction = None
rospy.loginfo("not found")
# ------------------ 发布检测结果 ------------------ #
# 没有检测到
if image_out_num == 1:
if self.pub_image_type == "compressed":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(cv_image_input, "jpg"))
elif self.pub_image_type == "raw":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(cv_image_input, "bgr8"))
# 检测到
elif image_out_num == 2:
draw_params_construction = dict(matchColor=(255, 0, 0), # draw matches in green color
singlePointColor=None,
matchesMask=matches_construction, # draw only inliers
flags=2)
final_construction = cv2.drawMatches(cv_image_input, kp1, self.img_construction, self.kp_construction,
good_construction, None, **draw_params_construction)
if self.pub_image_type == "compressed":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(final_construction, "jpg"))
elif self.pub_image_type == "raw":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(final_construction, "bgr8"))
detect_tunnel_sign¶
turtlebot3_autorace_2020\turtlebot3_autorace_detect\nodes\detect_tunnel_sign
fnPreproc
def fnPreproc(self):
# Initiate SIFT detector
# self.sift = cv2.SIFT_create()
self.sift = sift = cv2.SIFT_create(nfeatures=0, nOctaveLayers=3, contrastThreshold=0.04, edgeThreshold=10,
sigma=1.6)
dir_path = os.path.dirname(os.path.realpath(__file__))
dir_path = dir_path.replace('turtlebot3_autorace_detect/nodes', 'turtlebot3_autorace_detect/')
dir_path += 'image/'
self.img_tunnel = cv2.imread(dir_path + 'tunnel.png', 0) # trainImage3
self.kp_tunnel, self.des_tunnel = self.sift.detectAndCompute(self.img_tunnel, None)
FLANN_INDEX_KDTREE = 0
index_params = dict(algorithm=FLANN_INDEX_KDTREE, trees=5)
search_params = dict(checks=50)
self.flann = cv2.FlannBasedMatcher(index_params, search_params)
cbFindTrafficSign
def cbFindTrafficSign(self, image_msg):
# 降低检测频率
if self.counter % 3 != 0:
self.counter += 1
return
else:
self.counter = 1
# # 保存图片
# cv_image = self.cvBridge.imgmsg_to_cv2(image_msg, desired_encoding='bgr8')
# cv2.imwrite('/home/itcast/Downloads/tunnel01.png', cv_image)
if self.sub_image_type == "compressed":
# converting compressed image01 to opencv image01
np_arr = np.frombuffer(image_msg.data, np.uint8)
cv_image_input = cv2.imdecode(np_arr, cv2.IMREAD_COLOR)
elif self.sub_image_type == "raw":
cv_image_input = self.cvBridge.imgmsg_to_cv2(image_msg, "bgr8")
MIN_MATCH_COUNT = 5
# find the keypoints and descriptors with SIFT
kp1, des1 = self.sift.detectAndCompute(cv_image_input, None)
matches_tunnel = self.flann.knnMatch(des1, self.des_tunnel, k=2)
image_out_num = 1
# ------------------ 检测tunnel标志 ------------------ #
good_tunnel = []
for m, n in matches_tunnel:
if m.distance < 0.7 * n.distance:
good_tunnel.append(m)
if len(good_tunnel) > MIN_MATCH_COUNT:
src_pts = np.float32([kp1[m.queryIdx].pt for m in good_tunnel]).reshape(-1, 1, 2)
dst_pts = np.float32([self.kp_tunnel[m.trainIdx].pt for m in good_tunnel]).reshape(-1, 1, 2)
M, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 5.0)
matchesMask_tunnel = mask.ravel().tolist()
# 发布检测到的交通标识
msg_sign = UInt8()
msg_sign.data = self.TrafficSign.tunnel.value
self.pub_traffic_sign.publish(msg_sign)
rospy.loginfo("tunnel")
image_out_num = 4
else:
matchesMask_tunnel = None
rospy.loginfo("nothing")
# ------------------ 发布检测结果 ------------------ #
# 没有检测到
if image_out_num == 1:
if self.pub_image_type == "compressed":
# publishes traffic sign image01 in compressed type
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(cv_image_input, "jpg"))
elif self.pub_image_type == "raw":
# publishes traffic sign image01 in raw type
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(cv_image_input, "bgr8"))
# 检测到
elif image_out_num == 4:
draw_params_tunnel = dict(matchColor=(255, 0, 0), # draw matches in green color
singlePointColor=None,
matchesMask=matchesMask_tunnel, # draw only inliers
flags=2)
final_tunnel = cv2.drawMatches(cv_image_input, kp1, self.img_tunnel, self.kp_tunnel, good_tunnel, None,
**draw_params_tunnel)
if self.pub_image_type == "compressed":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_compressed_imgmsg(final_tunnel, "jpg"))
elif self.pub_image_type == "raw":
self.pub_image_traffic_sign.publish(self.cvBridge.cv2_to_imgmsg(final_tunnel, "bgr8"))
SIFT尺度不变特征变换¶
SIFT（Scale-Invariant Feature Transform）可以翻译为尺度不变特征变换,该算法可用于提取关键点并计算其描述符。具体分为以下几个步骤：
- 尺度空间的极值检测
- 关键点定位
- 方向分配
- 关键点描述符
- 关键点匹配
import cv2
import numpy as np
img = cv2.imread('./img/box.png')
gray= cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)
# 创建SIFT检测器
sift = cv2.SIFT_create()
# 检测灰度图
kp = sift.detect(gray,None)
kp1, des1 = sift.detectAndCompute(gray, None)
# 绘制检测出的特征点
# img=cv2.drawKeypoints(gray, kp, None)
img=cv2.drawKeypoints(gray, kp1, None, flags=cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS)
cv2.imshow("dst", img)
if cv2.waitKey(0) == 27:
cv2.destroyAllWindows()
这里sift.drawKeypoints(gray,None)用来查找图片中的素有关键点和描述符，如果希望只在图片中的某个区域查找，则可将掩膜Mask作为第二个参数。每个关键点都是一个特殊的结构对象，具有许多属性，例如其（x，y）坐标，有意义的邻域的大小，描述其方向的角度，描述其关键点强度等。
cv2.drawKeypoints函数默认的flags打印参数是cv2.DRAW_MATCHES_FLAGS_DEFAULT，只在关键点上打印圆圈，我们可以传入cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS参数，他会画出一个关键点尺寸大小的圆，并标出其方向信息。
FLANN based Matcher¶
FLANN是Fast Library for Approximate Nearest Neighbors.的缩写。可以实现一张图片和其它图片进行特征匹配.
对于基于FLANN的匹配器，我们需要传递两个字典，这些字典指定要使用的算法及其相关参数等。
IndexParams¶
第一个是IndexParams。对于各种算法，要传递的信息在FLANN文档中进行了说明。
- 对于SIFT算法，初始化如下：
index_params = dict(algorithm = FLANN_INDEX_KDTREE, trees = 5)
SearchParams¶
第二个字典是SearchParams。它指定索引中的树应递归遍历的次数。较高的值可提供更好的精度，但也需要更多时间
search_params = dict(checks=100)
匹配代码如下：
import numpy as np
import cv2
MIN_MATCH_COUNT = 5
def main():
im1 = cv2.imread('img/box.png', cv2.IMREAD_COLOR) # queryImage
im2 = cv2.imread('img/box_in_scene.png', cv2.IMREAD_COLOR) # trainImage
# im1 = cv2.imread('./intersection/intersection.png', cv2.IMREAD_COLOR) # queryImage
# im2 = cv2.imread('./img/intersection_pic.png', cv2.IMREAD_COLOR) # trainImage
# im1 = cv2.imread('./img/construction.png', cv2.IMREAD_COLOR) # queryImage
# im2 = cv2.imread('./img/a.png', cv2.IMREAD_COLOR) # trainImage
# im1 = cv2.imread('./sign/left.png', cv2.IMREAD_COLOR) # queryImage
# im2 = cv2.imread('img/intersection_pic.png', cv2.IMREAD_COLOR) # trainImage
img1 = cv2.cvtColor(im1, cv2.COLOR_BGR2GRAY)
img2 = cv2.cvtColor(im2, cv2.COLOR_BGR2GRAY)
# 保留500个特征点
sift = cv2.SIFT_create(500)
# find the keypoints and descriptors with SIFT
# 通过SIFT找到关键点和描述符
kp1, des1 = sift.detectAndCompute(img1, None)
kp2, des2 = sift.detectAndCompute(img2, None)
print("kp1: {}, kp2: {}".format(len(kp1), len(kp2)))
im1_copy = im1.copy()
cv2.drawKeypoints(im1_copy, kp1, im1_copy, flags=cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS)
# cv2.imshow("kp1", im1_copy)
im2_copy = im2.copy()
cv2.drawKeypoints(im2_copy, kp2, im2_copy, flags=cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS)
# cv2.imshow("kp2", im2_copy)
# cv2.imshow('img1',im1_copy)
# cv2.imshow('img2',im2_copy)
# cv2.waitKey(0)
# return
# FLANN parameters
FLANN_INDEX_KDTREE = 0
# KD树 深度为5
index_params = dict(algorithm=FLANN_INDEX_KDTREE, trees=5)
# 指定索引中的树应该递归遍历的次数。值越高，精度越高，但是也越耗时
search_params = dict(checks=50) # or pass empty dictionary
# 创建Flann匹配器
flann = cv2.FlannBasedMatcher(index_params, search_params)
# 执行匹配 2个最佳匹配点
matches = flann.knnMatch(des1, des2, k=2)
print(f'匹配:{matches}')
使用特征匹配查找目标¶
为了定位物体的位置，我们可以使用calib3d模块中的函数，即cv2.findHomography()，我们将两个图像中对应的特征点的集合传给这个函数，它将找到该对象的透视变换矩阵。然后，我们可以使用cv2.perspectiveTransform()执行这个变换进而找到对象。找到这个转换矩阵至少需要四个正确的点。匹配时可能会出现一些可能影响结果的错误。为了解决这个问题，我们可以使用RANSAC或LEAST_MEDIAN算法。
代码实现
通过SIFT查找特征点，并使用FLANN进行特征匹配，找到最佳匹配结果
import numpy as np
import cv2
MIN_MATCH_COUNT = 5
def main():
im1 = cv2.imread('img/box.png', cv2.IMREAD_COLOR) # queryImage
im2 = cv2.imread('img/box_in_scene.png', cv2.IMREAD_COLOR) # trainImage
# im1 = cv2.imread('./intersection/intersection.png', cv2.IMREAD_COLOR) # queryImage
# im2 = cv2.imread('./img/intersection_pic.png', cv2.IMREAD_COLOR) # trainImage
# im1 = cv2.imread('./img/construction.png', cv2.IMREAD_COLOR) # queryImage
# im2 = cv2.imread('./img/a.png', cv2.IMREAD_COLOR) # trainImage
# im1 = cv2.imread('./sign/left.png', cv2.IMREAD_COLOR) # queryImage
# im2 = cv2.imread('img/intersection_pic.png', cv2.IMREAD_COLOR) # trainImage
img1 = cv2.cvtColor(im1, cv2.COLOR_BGR2GRAY)
img2 = cv2.cvtColor(im2, cv2.COLOR_BGR2GRAY)
# 保留500个特征点
sift = cv2.SIFT_create(500)
# find the keypoints and descriptors with SIFT
# 通过SIFT找到关键点和描述符
kp1, des1 = sift.detectAndCompute(img1, None)
kp2, des2 = sift.detectAndCompute(img2, None)
print("kp1: {}, kp2: {}".format(len(kp1), len(kp2)))
im1_copy = im1.copy()
cv2.drawKeypoints(im1_copy, kp1, im1_copy, flags=cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS)
# cv2.imshow("kp1", im1_copy)
im2_copy = im2.copy()
cv2.drawKeypoints(im2_copy, kp2, im2_copy, flags=cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS)
# cv2.imshow("kp2", im2_copy)
# cv2.imshow('img1',im1_copy)
# cv2.imshow('img2',im2_copy)
# cv2.waitKey(0)
# return
# FLANN parameters
FLANN_INDEX_KDTREE = 0
# KD树 深度为5
index_params = dict(algorithm=FLANN_INDEX_KDTREE, trees=5)
# 指定索引中的树应该递归遍历的次数。值越高，精度越高，但是也越耗时
search_params = dict(checks=50) # or pass empty dictionary
# 创建Flann匹配器
flann = cv2.FlannBasedMatcher(index_params, search_params)
# 执行匹配 2个最佳匹配点
matches = flann.knnMatch(des1, des2, k=2)
print(f'匹配:{matches}')
# 存储好的匹配
good = []
for m, n in matches:
if m.distance < 0.7 * n.distance:
good.append(m)
# 创建掩膜， 只绘制好的匹配
matchesMask = None
print(f'匹配的点的个数:{len(good)}')
if len(good) > MIN_MATCH_COUNT:
# 分别取出匹配成功的queryImage的所有关键点 src_pts 以及trainImage的所有关键点 dst_pts
# m.queryIdx 关键点的索引 pt:坐标
src_pts = np.float32([kp1[m.queryIdx].pt for m in good]).reshape(-1, 1, 2)
dst_pts = np.float32([kp2[m.trainIdx].pt for m in good]).reshape(-1, 1, 2)
# 使用findHomography并结合RANSAC算法，避免一些错误的点对结果产生影响(去除一些偏差大的点)
# 返回透视变换矩阵和mask
M, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 5.0)
# 转成一行多列的。描述了对应索引位置的匹配结果是否在结果区域内
matchesMask = mask.ravel().tolist()
h, w = img1.shape
pts = np.float32([[0, 0], [0, h - 1], [w - 1, h - 1], [w - 1, 0]]).reshape(-1, 1, 2)
# 透视变换
dst = cv2.perspectiveTransform(pts, M)
# 在图2中绘制匹配的蓝色方框
im2 = cv2.polylines(im2, [np.int32(dst)], True, (255, 0, 0), 3, cv2.LINE_AA)
else:
print("Not enough matches are found - %d/%d" % (len(good), MIN_MATCH_COUNT))
matchesMask = None
draw_params = dict(matchColor=(0, 255, 0), # draw matches in green color
singlePointColor=None,
matchesMask=matchesMask, # draw only inliers
flags=cv2.DRAW_MATCHES_FLAGS_NOT_DRAW_SINGLE_POINTS)
# 绘制匹配
img3 = cv2.drawMatches(im1, kp1, im2, kp2, good, None, **draw_params)
cv2.imshow('matches', img3)
cv2.imshow('img1', im1)
cv2.imshow('img2', img2)
return 0
if __name__ == '__main__':
main()
cv2.waitKey(0)
good保存了所有匹配组的query索引和train索引信息，则如果结果个数符合要求，我们将匹配成功的所有的关键点坐标提取出来。将他们交给cv2.findHomography()函数，来计算透视变换矩阵。一旦我们得到了3×33×3的变换矩阵，就可以使用它将queryImage的角转换为trainImage中的对应点。
